Mutual of Omaha Data Center & Business Resumption

Mutual of Omaha Data Center & Business Resumption

Morrissey Engineering provided design and commissioning services for the expansion of an existing data center in Blair that provides disaster recovery services for the downtown Omaha facility.

Services Provided

Design Features

  • New primary data center configured for active-active computing with second site

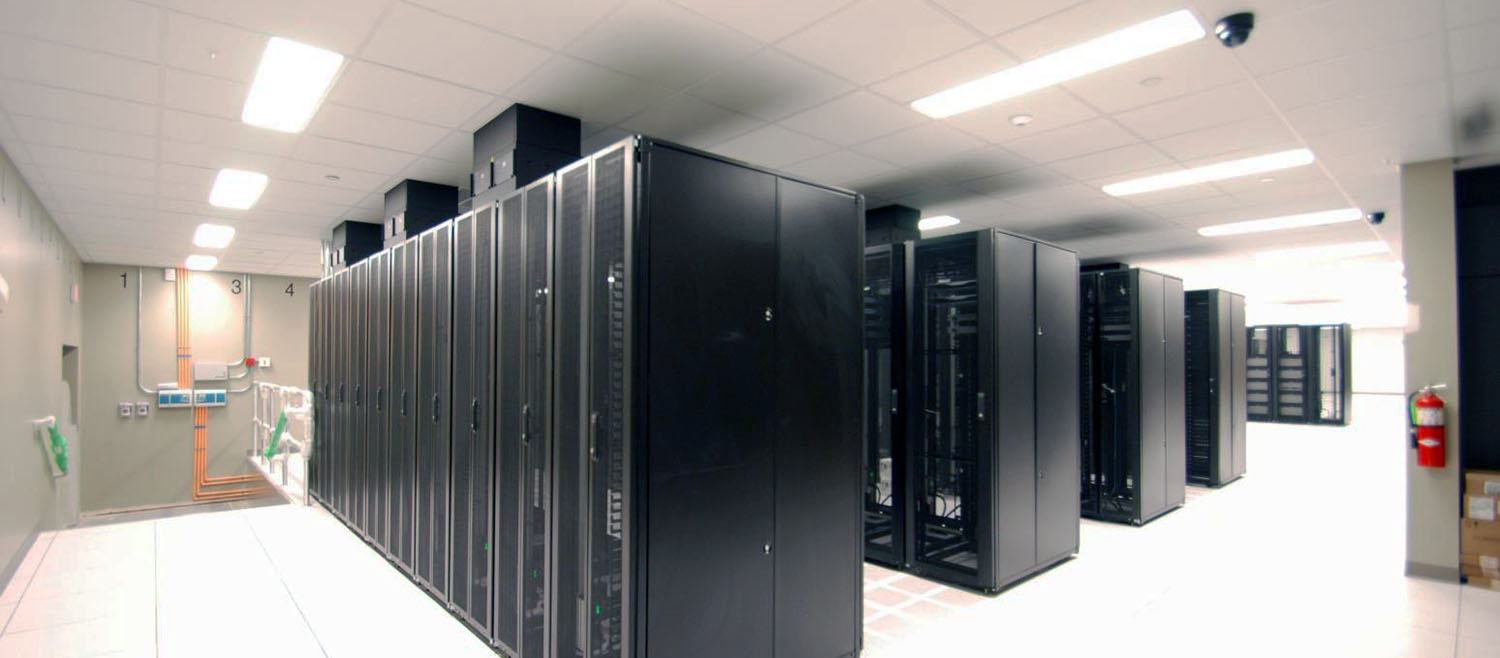

  • Data Center - 6,000 SF raised floor high density
  • Business resiliency -  500 seats

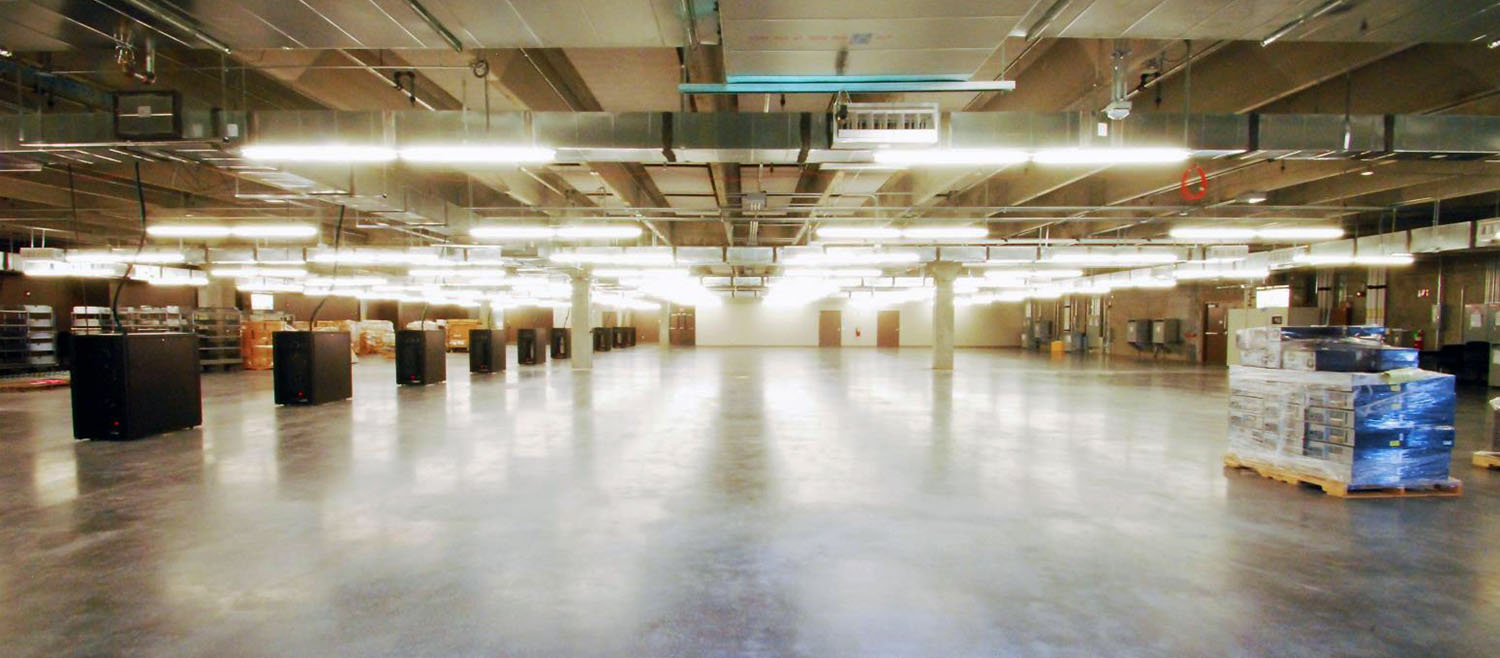

  • Print center - 11,000 SF
  • Critical electrical segregation from non-data center infrastructure
  • Ability to double capacity of infrastructure
  • Data cabinet chimney system ducts hot air to ceiling plenum and variable speed fans and cabinet pressure control
  • High-efficiency air-cooled computer room air conditioning units with refrigerant based economizer for free cooling and significant energy cost savings
  • Full telecom infrastructure design including cabinets, copper, fiber backbone, cable management and grounding
  • 2-750KW 2N UPS configuration
  • PUE target - 1.5

Project

Addition

Location

Blair, Nebraska

Square Footage

6,000 SF Data Center
11,000 SF Print Shop

Completion Date

2014

Architect

HBA
